In the intricate process of water treatment, settling tanks play a pivotal role, and sludge removal within these tanks is a crucial aspect that directly impacts the quality of treated water. A settling tank, also known as a sedimentation tank, is designed to separate suspended solids from water through the force of gravity. As water flows through the tank, heavier particles settle to the bottom, forming sludge. The effective removal of this sludge is essential for maintaining the optimal performance of the settling tank and ensuring the production of clean, potable water.

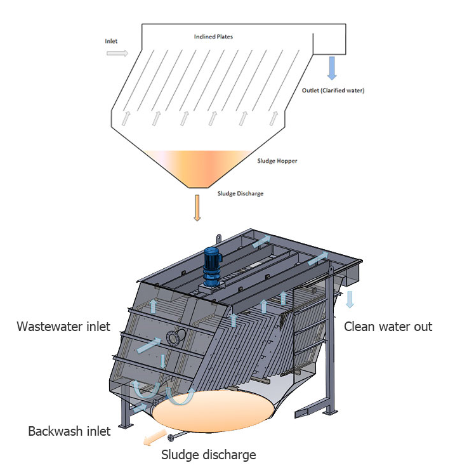

Sedimentation tanks operate on the principle of gravity separation. When water enters the settling tank, the flow velocity is reduced, allowing suspended particles to settle down. The tank is designed with a large surface area and a relatively low depth to facilitate this process. As the water moves slowly through the tank, particles with a higher density than water start to sink.
There are different types of sedimentation tanks, such as rectangular and circular ones. In a rectangular settling tank, water typically enters at one end and flows horizontally through the tank. The particles settle on the bottom as the water progresses. Circular sedimentation tanks, on the other hand, have a central inlet, and the water flows radially outward. The design of these tanks is carefully engineered to ensure that the retention time of water is sufficient for particles to settle.
The rate of sedimentation depends on several factors. The size and density of the particles are significant. Larger and denser particles settle more quickly. For example, sand particles, which are relatively large and dense, will settle rapidly compared to fine clay particles. The viscosity of the water also affects sedimentation. Warmer water has a lower viscosity, which can enhance the settling process. Additionally, the initial concentration of suspended solids in the water influences how long it takes for the tank to effectively separate the particles.
Sludge, the accumulated solids at the bottom of the settling tank, can pose several problems if not removed promptly and efficiently. Firstly, if the sludge is allowed to build up, it can reduce the effective volume of the settling tank. This means that the tank will have less space to hold water for sedimentation, ultimately decreasing its overall capacity to treat water. As a result, the quality of the treated water may deteriorate as there is less time and space for particles to settle properly.
Secondly, the presence of excessive sludge can lead to the release of contaminants back into the water. Some of the settled particles may contain harmful substances such as heavy metals, bacteria, or organic pollutants. If the sludge is not removed, these contaminants can start to leach back into the water due to biological or chemical processes occurring within the sludge. This can pose a serious threat to public health if the water is intended for drinking or other domestic uses.
Moreover, the build - up of sludge can cause operational issues in the settling tank. It can interfere with the flow patterns of water within the tank, disrupting the normal sedimentation process. For instance, if the sludge accumulates unevenly, it may create areas of turbulence that prevent particles from settling as they should.

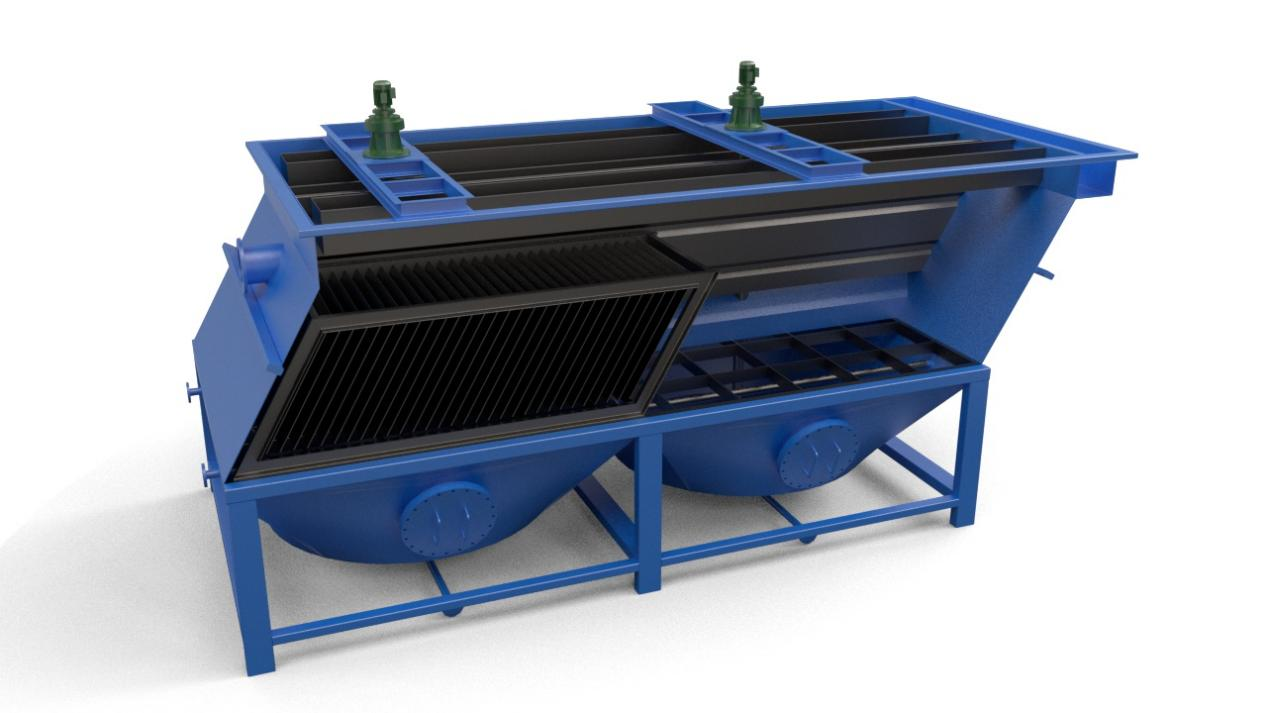

There are various methods employed for sludge removal in settling tanks. One common method is the use of mechanical scrapers. In rectangular settling tanks, chain - and - flight scrapers are often used. These scrapers are installed on a track that runs along the bottom of the tank. As the scraper moves, it pushes the sludge towards a collection hopper located at one end of the tank. The sludge is then pumped out of the hopper for further treatment or disposal.
In circular settling tanks, a center - driven or peripheral - driven sludge collector is commonly used. The center - driven collector has a rotating arm with blades that scrape the sludge towards the center of the tank, where it is then removed. The peripheral - driven collector, as the name implies, is driven from the outer edge of the tank and also serves to collect the sludge and transport it to a removal point.
Another method is the use of suction devices. Vacuum - type sludge removal systems can be employed to suck up the sludge from the bottom of the settling tank. These systems are especially useful for removing fine - grained or semi - liquid sludge. They can be more precise in targeting specific areas of sludge accumulation and can be adjusted to different depths within the sludge layer.
In some cases, chemical aids are used to enhance sludge removal. Coagulants and flocculants can be added to the water before it enters the settling tank. These chemicals cause the suspended particles to aggregate into larger flocculants, which settle more easily. Additionally, they can improve the dewatering properties of the sludge, making it easier to remove from the tank.
Despite the various methods available for sludge removal, there are several challenges that water treatment plants face. One of the main challenges is dealing with variable influent characteristics. The quality and quantity of suspended solids in the water entering the settling tank can vary significantly depending on factors such as the source of the water (e.g., river, lake, or groundwater), weather conditions, and industrial discharges. For example, during heavy rainfall, surface runoff may carry a large amount of sediment and debris into the water treatment plant, overwhelming the settling tank's capacity.
Another challenge is the maintenance of the sludge removal equipment. Mechanical scrapers and other devices are prone to wear and tear. They need regular inspection, lubrication, and repair to ensure smooth operation. If the equipment breaks down, it can lead to a backlog of sludge in the tank, quickly deteriorating the water treatment process.
In addition, the environmental impact of sludge disposal is a growing concern. Sludge often contains contaminants, and improper disposal can lead to soil and water pollution. Finding environmentally friendly ways to treat and dispose of the sludge, such as anaerobic digestion to produce biogas or using it in landfills in a properly regulated manner, is a complex task that requires careful consideration.
Settling tanks are the workhorses of water treatment plants, and efficient sludge removal is the key to their successful operation. Understanding how sedimentation tanks work, the importance of sludge removal, the methods available for it, and the challenges involved is essential for ensuring the production of high - quality, safe water. As water treatment technology continues to evolve, there is a need for continuous improvement in the design and operation of settling tanks and sludge removal systems to meet the growing demands for clean water and to address environmental concerns. By effectively managing the process of sludge removal in settling tanks, water treatment plants can contribute significantly to public health and environmental sustainability.
