Lamella clarifiers are widely used in wastewater treatment plants to improve solid-liquid separation efficiency. Their design is based on the principle of shallow-depth sedimentation, achieved by stacking multiple inclined plates inside a compact tank. One of the most important aspects of designing an effective system is following proper lamella clarifier design criteria while optimizing surface area. These two factors determine the performance, reliability, and cost-effectiveness of the clarifier.
Our company manufactures lamella clarifiers that are designed according to international engineering standards, ensuring consistent suspended solids removal and minimal operational issues.
When engineers design a lamella clarifier, they follow several critical criteria to ensure optimal performance. The main factors include:
Surface Area Loading Rate (SALR)
The clarifier must be sized based on the effective surface area provided by inclined plates.
A typical SALR is between 1 to 3 m³/m²·h, depending on wastewater characteristics.
Plate Angle
Plates are generally installed at 55°–60°.
This angle ensures solids slide down effectively without clogging.
Plate Spacing
Spacing ranges from 40 to 80 mm.
Wider spacing is used for high solids loads, while closer spacing is suitable for low solids.
Hydraulic Retention Time (HRT)
Adequate retention ensures sufficient particle settling.
Typical HRT is 20 to 30 minutes, depending on influent solids concentration.
Sludge Hopper Design
The hopper should have steep slopes to allow easy sludge removal.
Sludge withdrawal must be continuous or frequent to prevent buildup.
By adhering to these design parameters, lamella clarifiers can consistently deliver high separation efficiency.
The concept of surface area is central to lamella clarifier performance. In conventional clarifiers, surface area is limited by the tank’s horizontal dimensions. Lamella clarifiers overcome this by stacking inclined plates, multiplying the effective settling surface area within a compact footprint.
For example:
A 10 m² tank equipped with lamella plates can provide an effective surface area of 100 m² or more.
This increased area allows higher flow rates without compromising settling efficiency.
Design engineers calculate surface area requirements based on influent solids concentration, particle size distribution, and target effluent quality. The result is a system that maximizes solids removal while minimizing land use and construction costs.

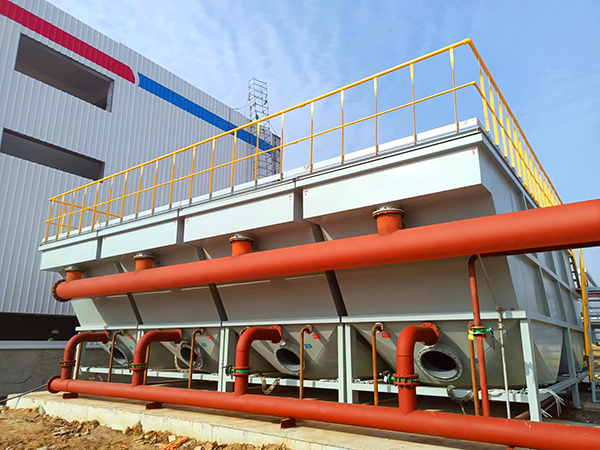

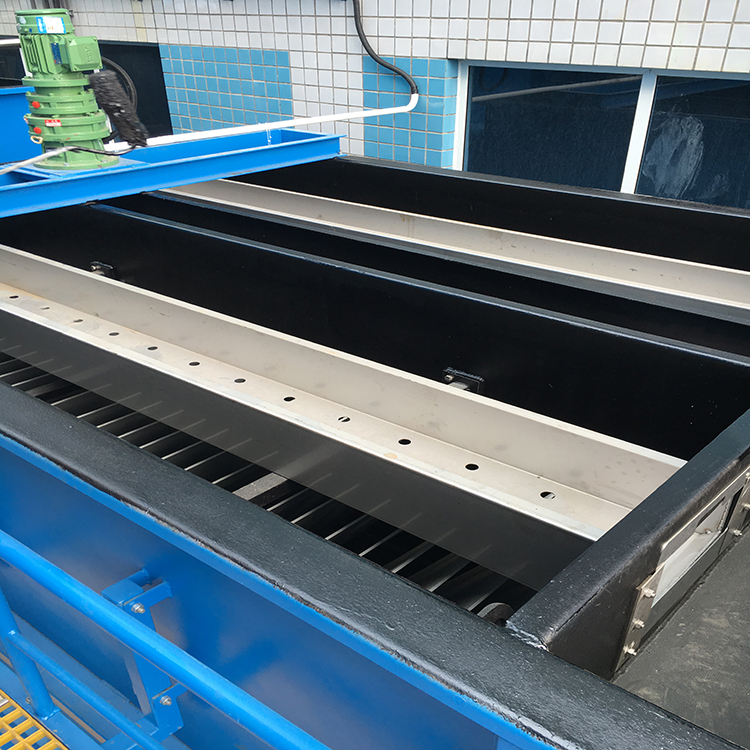

Hydraulic flow distribution is another important part of lamella clarifier design criteria. Uneven distribution can lead to short-circuiting, reducing effective surface area utilization. To prevent this, engineers incorporate:
Even inlet distribution systems to spread flow across all plates.
Baffles and weirs to reduce turbulence.
Uniform outlet collection troughs to ensure consistent effluent quality.
When surface area and hydraulics are properly balanced, the clarifier operates with high efficiency and low maintenance needs.
Lamella clarifiers must also be designed with materials suited for the specific wastewater environment. Options include:
304/316 stainless steel for corrosive and industrial applications.
Epoxy-coated carbon steel for municipal wastewater.
FRP and PVC plate packs for lightweight, chemical-resistant alternatives.
Material choice affects not only durability but also the lifetime performance of the plates, which directly influences the effective surface area.
Well-designed lamella clarifiers are widely applied in:
Municipal wastewater treatment – Reducing suspended solids before biological treatment.
Industrial plants – Clarification of chemical, food, textile, and mining wastewater.
Potable water treatment – Pre-settling before filtration.
Sludge thickening – Concentrating solids for dewatering.
Each application requires careful adjustment of design criteria to match influent characteristics and treatment goals.
By applying correct lamella clarifier design criteria and optimizing surface area, operators achieve multiple benefits:
Compact footprint – Up to 80% smaller than traditional clarifiers.
Consistent solids removal – Effluent TSS levels reliably meet standards.
Cost savings – Lower civil works, smaller tanks, and reduced chemical demand.
Operational flexibility – Modular systems allow expansion when flow increases.
Improved downstream performance – Reduced solids load protects biological and tertiary units.
These advantages show why lamella clarifiers are increasingly preferred in modern wastewater treatment plants.
Our company has years of experience in designing and producing lamella clarifiers optimized for different wastewater treatment needs. We provide:
Custom design using international design criteria
Accurate surface area calculations for each project
Skid-mounted or containerized units for easy installation
Technical support for integration with existing plants
Long-term maintenance and spare parts supply
By combining engineering expertise with practical experience, we ensure that our lamella clarifiers deliver reliable performance, long service life, and high cost-effectiveness.
