Dissolved air flotation plays an important role in wastewater treatment process, used to remove impurities from wastewater generated by various industries, including suspended solids, organic matter, and inorganic matter, so that the treated wastewater meets the requirements for reuse or discharge.

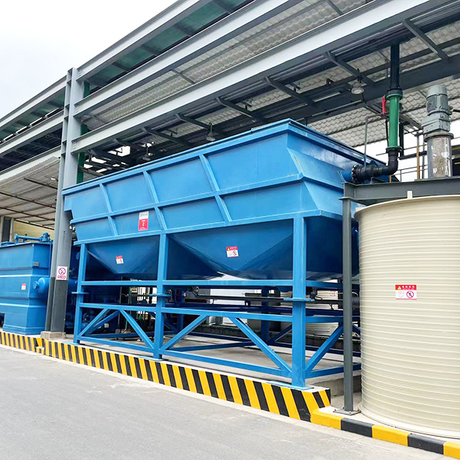

Dissolved air flotation is composed of DAF system and main tank body. DAF system includes dissolved air vessel, solenoid valve, safety valve, pressure gauge, air compressor, reflux pump and releaser. Main tank body includes chemical reaction area, contacting area, separation area, sludge discharge tank and clean water area.
Dissolved air flotation takes the treated effluent as circulating water and flows into the dissolved air vessel. At the same time, compressed air is added to the dissolved air vessel to mix them thoroughly. Then the dissolved air water is released to the contacting area and large number of micro-bubbles are generated via releasers, and the micro-bubbles quickly attach to the coagulated suspended solids, making their density lower than that of water, it automatically rises to the surface. The scum floating to the surface is scraped to the sludge discharge tank by skimmer scraper, and the clean water at the bottom flows into the clean water area.
Firstly, the sewage enters the chemical reaction zone, and PAC is added to coagulate the small particles in the sewage into larger ones. Then, PAM is added to coagulate into larger flocs.
Secondly, the DAF system extracts water and air into the dissolved air vessel through the reflux pump and the air compressor, and form dissolved air water through the jet injector inside the dissolved air vessel.
Next, a large number of micro-bubbles with a diameter of 20-45 μm are generated through the instantaneous pressure release of the releasers, which quickly attach to the flocculated suspended solids and make their density lower than that of water, and float to the surface.
Finally, the scum floating to the surface is scraped to the sludge discharge tank by skimmer scraper, and the clean water at the bottom flows into the clean water area through the outlet device.
One of the most important functions of wastewater treatment process is to remove floatable solids. Floatable solids are an important water quality indicator.
Floatable solids refer to substances that are insoluble in water but can float, typically including suspended solids, organic matter, and inorganic matter. These floating solid substances deteriorate water quality, cannot be reused, and cannot meet the discharge requirements of enterprises. In addition to removing floating solids from wastewater, the wastewater treatment process can also remove organic, inorganic, and pathogenic substances from wastewater, which can cause the water to turn black and odorous, affecting water quality. Organic matter includes oxygen consuming organic matter, recalcitrant organic matter, organic nitrogen, and ammonia nitrogen. Inorganic substances include heavy metal ions, waste acids, and waste alkalis; Pathogens include bacteria, viruses, and parasitic eggs. The wastewater treatment process can effectively remove these substances from wastewater. The wastewater treatment process can significantly improve water quality by removing floating solids, biological and chemical substances. After the wastewater treatment process, the water can be purified to reduce pollution and achieve wastewater recycling and reuse.
Wastewater Treatment Industry
Dissolved air flotation is widely used in wastewater treatment process, it can effectively remove suspended solids and other insoluble substances in wastewater, and realize wastewater reuse.
Food Processing Industry
In food processing, dissolved air flotation can efficiently separate oils and fats from wastewater while removing suspended solids.
Petrochemical Industry
Dissolved air flotation equipment can be used to remove suspended solids, oils, and organic matter from petrochemical wastewater, meeting environmental protection requirements.
Paper Industry
The papermaking process requires a lot of water and also generates a large amount of wastewater. Dissolved air flotation can effectively remove COD and SS from the wastewater generated during the papermaking process.
Pharmaceutical Industry
In the process of pharmaceutical wastewater treatment, dissolved air flotation must be used to treat the wastewater. Dissolved air flotation can effectively remove toxic and harmful pollutants from pharmaceutical wastewater, reduce toxicity, and meet discharge requirements.
If you want to know if it is suitable for your industry, please feel free to contact us at any time.
High Removal Efficiency
The removal rate of suspended solids by dissolved air flotation can reach 85%.
Small Footprint
Compact design, relatively small footprint, suitable for places with limited space, and also easy to install and maintain.
Wide Applicability
Dissolved air flotation can be applied to different fields and has good effects in treating wastewater from various fields. Through the adsorption of microbubbles, solid-liquid separation of wastewater is achieved.
Easy Operation
The control system of dissolved air flotation is relatively advanced, which can achieve remote monitoring, automatic control and other functions. The operation is simple, and once a fault occurs, maintenance can be carried out quickly.
Dissolved air flotation is an efficient water treatment equipment with the advantages of high removal efficiency, small footprint, wide applicability and easy operation. By attaching microbubbles to flocculated suspended solids, impurities are removed from wastewater generated by various industries, allowing the treated wastewater to be reused or meet discharge requirements.
