MBBR Media and Its Role in Water Treatment Systems


Introduction

Water treatment has become increasingly vital as industrial and domestic wastewater loads continue to rise. Among the advanced technologies utilized in modern water treatment systems, the Moving Bed Biofilm Reactor (MBBR) process stands out for its efficiency and adaptability. At the heart of this system lies MBBR media, which plays a critical role in the treatment of wastewater. This article explores how MBBR media is used in water treatment and answers the question: What does MBBR media use in a sewage treatment plant?


Understanding MBBR Media

MBBR media refers to the small plastic carriers used in the MBBR system to support biofilm growth. These carriers provide an extensive surface area where microorganisms attach and grow, forming a biofilm. This biofilm is responsible for breaking down organic pollutants in wastewater, making MBBR media a crucial component in the biological treatment process.

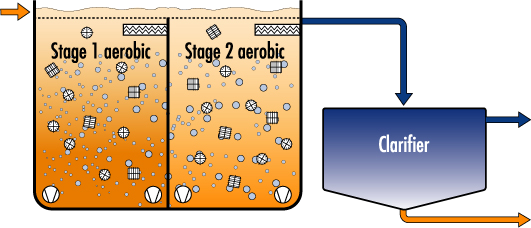

MBBR systems work by continuously moving these carriers in aeration tanks or anoxic reactors, enhancing the contact between microorganisms and wastewater. This movement increases the overall treatment capacity without the need for additional tank volume, making the MBBR system efficient and scalable for various water treatment needs.


The Role of MBBR Media in Water Treatment

The water treatment process that includes MBBR media is highly effective in treating both domestic and industrial wastewater. One of the primary advantages of MBBR technology is its simplicity and low maintenance compared to other advanced water treatment technologies such as membrane bioreactors (MBRs) or reverse osmosis (RO) systems.

MBBR media provides the following benefits in wastewater treatment:

1. Increased surface area: The carriers provide a large surface area for microbial growth, allowing more efficient biological degradation of pollutants.

2. Enhanced flexibility: The system can adapt to varying wastewater loads, making it ideal for treatment plants handling fluctuating flow rates.

3. Improved water quality: The media's biofilm breaks down both organic chemicals and nutrients, contributing to higher quality treated water.


What Does MBBR Media Use in a Sewage Treatment Plant?

In a sewage treatment plant, MBBR media is employed to improve the biological treatment of wastewater. The core function of MBBR media is to provide a home for bacteria that digest organic matter, converting it into harmless substances. The MBBR system is often used in both aerobic and anoxic conditions, depending on the specific treatment requirements.

For example, in the aerobic stage of treatment, MBBR media is used in aeration tanks where oxygen is supplied to encourage the growth of aerobic microorganisms. These microbes degrade organic chemicals and reduce the biochemical oxygen demand (BOD) and chemical oxygen demand (COD) of the wastewater. The end result is cleaner water that can be further treated or discharged.

In the anoxic stage, MBBR media is used to support the growth of denitrifying bacteria, which convert nitrates into nitrogen gas, a crucial step in reducing nitrogen levels in wastewater.


MBBR Media in Different Treatment Plants

The application of MBBR media varies across different types of wastewater treatment plants. Its flexibility makes it suitable for various sectors, including municipal sewage treatment, industrial effluent treatment, and even specialized applications such as food processing wastewater treatment.


mbbr k1 k2 k3 k4

Municipal Wastewater Treatment Plants

In municipal treatment plants, MBBR media is widely used for its ability to handle high organic loads and fluctuating wastewater volumes. Data from a typical municipal plant that uses MBBR media demonstrates its effectiveness:

· Influent BOD: 250 mg/L

· Effluent BOD: 20 mg/L

· Influent COD: 500 mg/L

· Effluent COD: 40 mg/L

The MBBR system, thanks to the large biofilm surface area provided by the media, achieved a BOD reduction of 92% and a COD reduction of 92%, demonstrating its efficiency in treating domestic sewage.


Industrial Wastewater Treatment Plants

In industrial wastewater treatment plants, MBBR media is commonly used to treat complex effluents containing high concentrations of pollutants such as oils, greases, and heavy metals. These contaminants are more difficult to degrade biologically, but MBBR media enhances the breakdown process by providing a stable environment for specialized microbes.

For example, in a chemical plant treating industrial wastewater, MBBR media helped reduce the following parameters:

· Influent COD: 1,000 mg/L

· Effluent COD: 100 mg/L

· Influent Total Suspended Solids (TSS): 200 mg/L

· Effluent TSS: 20 mg/L

This 90% reduction in COD and TSS illustrates the robustness of MBBR media in treating industrial wastewater.


How MBBR Media Improves Water Quality

One of the main advantages of MBBR media is its impact on water quality. The continuous movement of biofilm carriers allows for efficient contact between wastewater and microorganisms, leading to higher levels of contaminant removal. This improvement in water quality makes it easier for the treated effluent to meet stringent environmental standards.

In addition to improving organic matter removal, MBBR media is also effective in reducing nutrient levels, particularly nitrogen and phosphorus. In many regions, nutrient pollution is a significant concern, as excess nitrogen and phosphorus can lead to harmful algal blooms and other ecological problems in water bodies.

In a wastewater treatment facility focused on nitrogen removal, the MBBR system achieved the following:

· Influent Total Nitrogen: 50 mg/L

· Effluent Total Nitrogen: 5 mg/L

This reduction of 90% highlights the ability of MBBR media to support both carbon and nitrogen removal in wastewater treatment.


The MBBR System: A Low-Maintenance Solution

One of the reasons MBBR systems are favored in treatment plants is their low maintenance requirements. Unlike other biological treatment processes that require extensive cleaning or media replacement, MBBR media has a self-cleaning mechanism. The constant movement of the carriers in the aeration tank or reactor prevents excessive biofilm buildup, allowing for continuous operation without the need for regular maintenance shutdowns.

Additionally, the modular design of the MBBR system allows for easy scaling. As wastewater treatment needs increase, more MBBR media can be added to the system to enhance its capacity, making it an adaptable solution for growing communities or industrial expansions.


Combining MBBR with Other Water Treatment Technologies

To maximize the efficiency of wastewater treatment, MBBR systems can be integrated with other technologies such as reverse osmosis (RO) or advanced filtration methods. For instance, in tertiary treatment processes, combining MBBR with RO technology can result in extremely high-quality treated water suitable for reuse in industrial processes or for safe discharge into sensitive ecosystems.

By incorporating multiple treatment stages, plants can achieve superior water softening, nutrient removal, and contaminant reduction, improving the overall sustainability and environmental impact of their operations.


Conclusion

MBBR media plays an essential role in modern water treatment by providing a highly efficient and scalable solution for both municipal and industrial wastewater treatment plants. Its ability to support biofilm growth, reduce organic pollutants, and enhance nutrient removal makes it a vital component in the treatment process.

In answering the question, What does MBBR media use in a sewage treatment plant?, we see that MBBR media is primarily used to support the biological breakdown of organic matter and nutrients. This results in cleaner, safer water that can be reused or discharged with minimal environmental impact.

As water treatment needs continue to evolve, MBBR systems will remain at the forefront of efficient and sustainable water treatment technologies.
