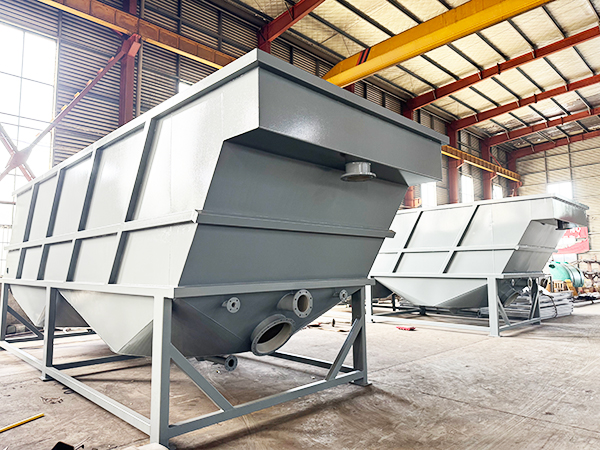

In modern wastewater treatment plants, lamella clarifiers have become essential equipment for efficient solid-liquid separation. They are compact units that use inclined plates to improve sedimentation performance. A key factor in their design is the effective surface area, which directly determines how much suspended solids can be removed from the water stream. By maximizing surface area within a small footprint, lamella plate clarifiers offer a highly efficient solution compared to traditional settling tanks.
Our company manufactures high-quality lamella clarifiers designed to optimize surface area utilization, reduce footprint, and enhance system efficiency. These clarifiers are widely applied in municipal, industrial, and commercial wastewater treatment facilities.
Surface area plays a fundamental role in sedimentation efficiency. The more surface area available, the faster and more effectively suspended solids can settle out of the liquid phase. In conventional horizontal clarifiers, surface area is limited by tank size, which leads to large construction requirements.
A lamella plate clarifier solves this issue by introducing multiple inclined plates inside the tank. These plates dramatically increase the effective settling area without requiring a larger footprint. For example, a lamella clarifier with 10 square meters of tank area may provide an equivalent settling surface area of 100 square meters due to the inclined plate configuration.
This multiplication of surface area is the reason lamella clarifiers can handle high flow rates and high suspended solids concentrations while remaining compact and cost-effective.
The operation of a lamella plate clarifier involves several steps:
Inlet distribution – Raw wastewater enters the clarifier and flows evenly across the lamella plates.
Sedimentation – As water rises between the plates, suspended solids settle onto the inclined surfaces.
Sludge collection – Gravity causes the settled particles to slide down the plates into a sludge hopper at the bottom.
Effluent discharge – Clarified water exits from the top through effluent troughs.
This design ensures that the increased surface area provided by the plates is fully utilized for sedimentation, producing clear effluent with reduced total suspended solids (TSS).
Our lamella clarifiers are designed with durability and performance in mind. Key features include:
Optimized plate angle (55°) for maximum solids sliding efficiency
Modular plate pack design for easy installation and maintenance
High surface area density per unit footprint
Stainless steel or coated carbon steel construction for long service life
Compact rectangular tanks suitable for retrofits or new plants
Customizable plate spacing based on solids concentration and flow rate
These features ensure high sedimentation performance across a wide range of wastewater treatment applications.
The optimized surface area in lamella plate clarifiers delivers several operational benefits:
Compact footprint – Requires up to 80% less land area compared to traditional clarifiers.
High solids removal efficiency – Removes particles as small as 50 microns.
Scalability – Surface area can be increased by adding more plate packs.
Low capital and operating cost – Smaller tank sizes reduce civil construction and energy use.
Consistent performance – Effective even under fluctuating flow and solids load conditions.
These advantages make lamella clarifiers a preferred choice for industries with limited space and high treatment demands.
Lamella clarifiers are versatile systems that can be used in many sectors where suspended solids removal is required:
Municipal wastewater treatment – Primary clarification before biological processes.
Food and beverage industry – Removal of fats, proteins, and organic solids.
Petrochemical and refinery plants – Treatment of chemical sludges and process water.
Textile and dyeing industries – Clarification of colored effluents and chemical precipitates.
Pulp and paper mills – Efficient removal of fibrous solids and fillers.
Mining operations – Sedimentation of heavy mineral particles from process water.
By utilizing the increased surface area of lamella plates, these systems achieve high levels of suspended solids reduction across diverse wastewater sources.
Material selection plays a vital role in lamella clarifier performance. Our systems are available in:
304/316 stainless steel – Ideal for corrosive and industrial wastewater.
Carbon steel with epoxy coating – Cost-effective for municipal plants.
FRP and PVC plate packs – Lightweight, chemical-resistant options.
Each material option is selected to match the influent water quality, ensuring long-term durability and minimal maintenance.
Lamella clarifiers are often integrated with other processes to improve overall wastewater treatment efficiency:
Chemical dosing units – Coagulants and flocculants enhance solids aggregation.
Dissolved air flotation (DAF) systems – Secondary polishing after lamella clarification.
Biological treatment units – Reduced solids loading ensures stable microbial activity.
Sludge dewatering equipment – Concentrated sludge from lamella clarifiers can be treated using belt presses or screw presses.
The combination of increased surface area and flexible integration makes lamella clarifiers essential components in modern wastewater treatment trains.
As a professional manufacturer of lamella clarifiers, our company delivers systems designed for maximum surface area utilization and reliable suspended solids removal. We provide:
Custom-built designs based on flow and solids load
Modular skid-mounted or containerized units
Full installation and commissioning support
Long-term technical assistance and spare parts supply
Our lamella clarifiers are trusted across multiple industries for their performance, durability, and cost-effectiveness.
