Views: 888 Author: Yosun Publish Time: 2025-02-24 Origin: Site
The importance of wastewater treatment as an important link in environmental protection and sustainable urban development is self-evident. A key component in this process is the settling tank, which plays a vital role in removing suspended solids from wastewater.
Suspended solids in wastewater refer to solid particles that are suspended (not dissolved) in water. These particles are large enough to be caught by physical treatment processes, like filtration or sedimentation, but too small to precipitate on their own without gravity or chemical treatment.
Settling tanks are an essential part of the primary treatment process in wastewater treatment plants. Here’s why they are so important:
Preventing Damage to Equipment: By removing large quantities of suspended solids early in the treatment process, settling tanks protect more sensitive equipment downstream, such as bioreactors and filters, from being clogged or damaged.
Improving Water Quality: Settling tanks significantly reduce the level of suspended solids in wastewater, resulting in cleaner water entering secondary and tertiary treatment stages. This improves the overall effectiveness of the entire treatment system.
Cost Efficiency: By reducing the solid load that needs to be processed in later stages, settling tanks make subsequent treatments more efficient and cost-effective.
The removal of suspended solids is very important in wastewater treatment, mainly due to the following reasons:
Clogging Equipment: The accumulation of solids in wastewater can damage treatment plant equipment like pumps, pipes, and filters, increasing maintenance costs.
Pollution: Left unchecked, suspended solids can cause water to become murky, impairing the aesthetic quality of water bodies and potentially causing long-term ecological damage.
Hindering Biological Treatment: Suspended solids may hinder the effectiveness of biological treatment processes, as they can consume oxygen and limit microbial activity needed for breaking down organic waste.
The preliminary treatment in wastewater treatment is to remove suspended solids from the wastewater. These solids, which can include particles of organic and inorganic matter, can cause problems in subsequent treatment processes if not removed.
This step generally includes two processes: pretreatment and primary precipitation. In the pretreatment stage, sewage is preliminarily filtered through screens and gates to remove larger impurities. In the primary sedimentation process, sewage enters the sedimentation tank, and due to sedimentation, suspended matter gradually settles into the sludge layer, while relatively clean water flows towards the next treatment step.

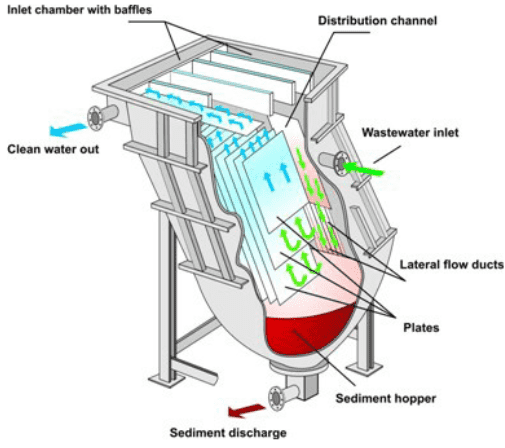

A settling tank is designed to utilize gravity to separate heavier particles, including suspended solids, from the liquid. Gravity is an effective method for separating suspended solids because the solid particles in wastewater have a higher density than water. This process is also known as sedimentation.
Flow Through the Tank: Wastewater enters the settling tank where the flow is slowed down, allowing particles within the liquid to settle over time.
Gravity-Based Separation: Heavier solids, including suspended particles, sink to the bottom of the tank. The clean water, free of most of its solid content, flows out over the top of the tank.
Sludge Collection: The solids that settle to the bottom form a layer of sludge, which needs to be periodically removed from the tank for further treatment or disposal.
The efficiency of a settling tank in removing suspended solids depends on several factors. Let's examine these:
Size of the Solids: Larger, heavier particles settle faster than smaller, lighter particles. This is why flocculation (a process where particles clump together into larger masses) is sometimes used to improve the settling of fine solids.
Flow Rate of Wastewater: The flow rate must be carefully controlled. If the wastewater flows through the tank too quickly, solids may not have enough time to settle properly. Slower flow rates allow for better sedimentation.
Tank Design: The design of the tank, including its shape and the presence of baffles (internal walls that direct flow), can impact how effectively solids are removed. Baffles help slow the flow, promoting better settlement.
Retention Time: The retention time is the amount of time wastewater remains in the settling tank. Longer retention times generally result in better settling of solids. This is why the size of the tank is crucial for optimizing performance.
While settling tanks are effective at removing larger, heavier solids, they are not as efficient at removing fine particles or dissolved contaminants. Therefore, they are typically followed by secondary and tertiary treatment processes like biological treatment (e.g., activated sludge) or chemical treatment (e.g., coagulation and filtration).
Settling tanks are fundamental components in the wastewater treatment process, effectively removing suspended solids and improving water quality. Through the use of gravity and thoughtful design, settling tanks make wastewater treatment more effective, cost-efficient, and capable of producing cleaner water for discharge or reuse.
