Skimming Device and DAF Dissolved Air Flotation in Wastewater Treatment

Introduction

Wastewater treatment is a complex process that involves multiple steps to remove contaminants before water can be discharged or reused. One of the most widely adopted technologies is the DAF dissolved air flotation system. This method uses microbubbles to separate suspended solids, oils, and grease from water. A crucial component of this system is the skimming device, which ensures efficient removal of floated sludge and contaminants. Without a reliable skimmer, the flotation process would be incomplete and effluent quality would drop significantly.

This article explores the role of skimming devices in DAF systems, their working principles, design considerations, and their importance in modern wastewater treatment plants.


Understanding DAF Dissolved Air Flotation

The DAF dissolved air flotation process relies on the principle of attaching dissolved air microbubbles to suspended solids and fats. These microbubbles reduce the density of the particles, causing them to float to the surface. Once accumulated at the top, the contaminants form a sludge layer. This is where the skimming device becomes essential. The skimmer continuously removes this layer, preventing re-entry into the water column and ensuring a consistent effluent quality.

DAF units are commonly used in industries such as:

  • Food and beverage processing

  • Petrochemical and oil refining

  • Pulp and paper manufacturing

  • Dairy and meat processing

  • Municipal wastewater treatment

In all these sectors, reliable skimming ensures system performance.


The Role of the Skimming Device

The skimming device is installed at the surface of the DAF tank. Its primary job is to push or pull the floating sludge into a collection channel. From there, the sludge is transported to a hopper or sludge tank for further treatment. The effectiveness of the skimmer directly influences the removal efficiency of fats, oils, grease (FOG), and suspended solids.

Key functions of the skimming device include:

  1. Continuous sludge removal – prevents build-up and ensures stable operation.

  2. Maintaining hydraulic balance – controls surface flow and prevents short-circuiting.

  3. Protecting effluent quality – ensures that the DAF dissolved air flotation process achieves target discharge limits.

  4. Reducing manual intervention – automated skimmers minimize labor requirements.


Types of Skimming Devices in DAF Systems

DAF skimmers are designed in different forms depending on tank geometry, sludge characteristics, and operational requirements.

  • Chain-and-flight skimmers: Use a continuous chain with flights to drag sludge across the surface into the collection trough.

  • Rotary arm skimmers: Use rotating paddles or arms to sweep the surface.

  • Adjustable paddle skimmers: Allow operators to adjust speed and depth for optimal performance.

  • Oil skimmers: Specially designed for separating oil layers from water in petrochemical wastewater.

Each design must ensure reliable operation under varying sludge thickness and flow conditions.

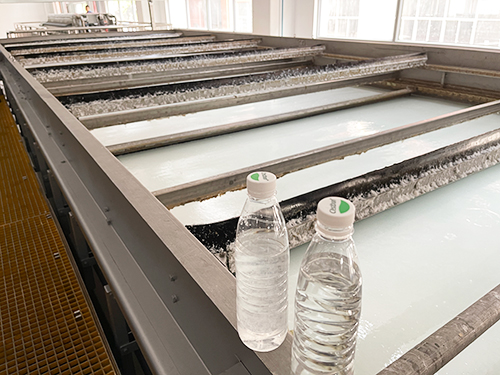

Skimming-Device-and-DAF-Dissolved-Air-Flotation-in-Wastewater-Treatment


Integration of Skimming Devices with DAF Dissolved Air Flotation

The skimming device is not an isolated unit. It works in synergy with other parts of the DAF dissolved air flotation system:

  1. Air saturation unit – generates the microbubbles that lift solids.

  2. Inlet flocculator – enhances particle aggregation before flotation.

  3. DAF tank – provides the environment where separation occurs.

  4. Skimming device – removes the floated sludge layer.

  5. Sludge handling system – processes the collected sludge.

Together, these components ensure that suspended solids, FOG, and other pollutants are effectively removed.


Design Considerations for Skimming Devices

When selecting or designing a skimming device for DAF systems, engineers must consider several factors:

  • Sludge characteristics: The thickness and stickiness of the sludge determine skimmer type.

  • Flow rate: Larger systems require skimmers with higher capacity and speed.

  • Tank geometry: Round or rectangular tanks influence skimmer selection.

  • Maintenance needs: Skimmers should be durable, with low wear components to reduce downtime.

  • Automation: Modern skimmers include variable speed drives and PLC integration for precise control.


Benefits of Skimming Devices in Wastewater Treatment

The use of efficient skimming devices in DAF systems offers multiple benefits:

  • Consistent removal of oils, grease, and solids

  • Improved effluent quality and compliance with environmental standards

  • Reduced operator workload through automation

  • Lower chemical consumption due to stable flotation conditions

  • Extended lifespan of downstream biological and filtration units

These advantages make skimmers indispensable in modern treatment plants.


Industrial Applications

Food and Beverage Industry

In food processing wastewater treatment, large amounts of fats, oils, and starch residues float to the surface during DAF treatment. The skimming device ensures continuous removal, preventing contamination of the clarified water.


Petrochemical Sector

DAF systems handle oily wastewater from refineries and petrochemical plants. Specialized oil skimmers separate oil layers for recovery or disposal.


Municipal Wastewater Treatment

Municipal plants often integrate DAF systems with skimmers to remove algae, scum, and light suspended solids before biological treatment.


Dairy and Meat Processing

High-protein and fat wastewater streams benefit greatly from DAF skimmers, which prevent clogging and protect downstream processes.


Operation and Maintenance of Skimming Devices

Proper operation and maintenance are critical for skimmer performance:

  • Routine inspection: Check chains, paddles, and arms for wear.

  • Lubrication: Maintain moving parts to avoid breakdown.

  • Surface adjustments: Ensure skimmers are aligned with the sludge layer.

  • Automation checks: Verify PLC signals and motor speeds.

Well-maintained skimmers can operate continuously with minimal downtime.


Future Trends in Skimming Devices and DAF Technology

The evolution of DAF dissolved air flotation and skimming devices is moving toward higher efficiency and automation:

  • Smart monitoring: Sensors measure sludge thickness and adjust skimmer speed automatically.

  • Energy efficiency: Low-power motors reduce operational costs.

  • Modular designs: Allow easy upgrades and maintenance.

  • Sustainable operation: Enhanced skimming reduces sludge volume and improves reuse potential.

These trends support industries in achieving compliance and sustainability goals.
