Flocculation is a key process in water treatment where fine particles suspended in water are brought together into larger clumps called flocs. These flocs are easier to separate from the water, making the treatment process more effective. The formation of flocs is achieved by adding specific chemicals known as flocculants, which help particles bind together.
Flocculation occurs when flocculants are introduced into the water. These flocculants work by neutralizing the electrical charges that usually keep particles apart, allowing them to come together and form larger aggregates. Once these particles are grouped into flocs, they can be more easily removed from the water through processes like sedimentation or filtration. Common flocculants include aluminum sulfate (alum), iron salts, and organic polymers, each chosen based on the specific characteristics of the water being treated and the nature of the contaminants present.

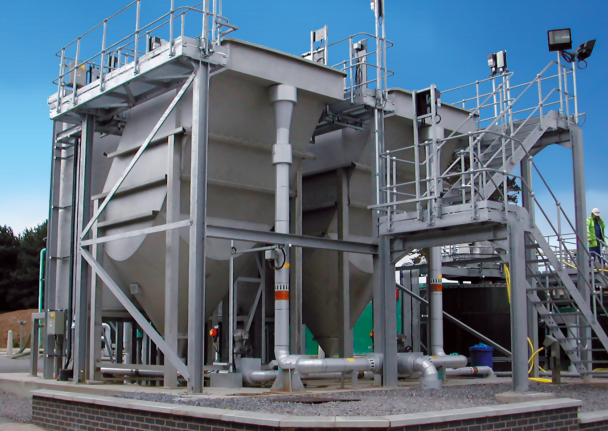

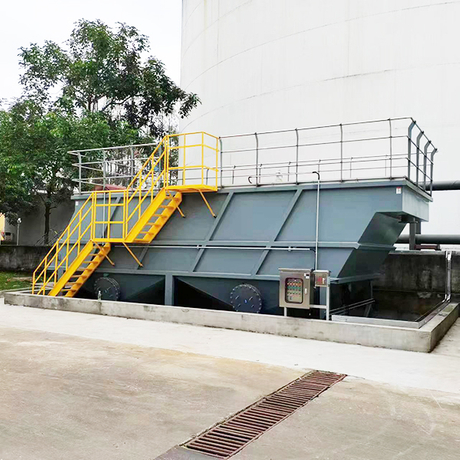

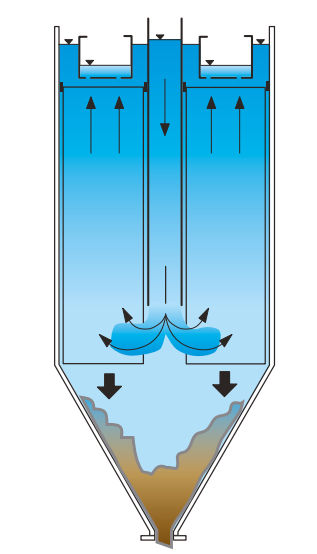

It is a well known fact that the settling area is the most significant aspect of the settling capacity of any settler. With the inclined plate concept, the effective gravity settling area becomes the area of each plate projected on a horizontal surface. As a result, up to 10 square meter of settling area become available for each square meter of floor space occupied by the unit. This distinct advantage, when combined with the Lamella clarifier settler’s unique flow distribution and simplified sludge removal technique, insures optimum performance.
Our Lamella clarifier settler is commonly used in potable water and sewage treatment works, as well as the pulp and paper, chemical process, food processing, surface treatment, power, mining & minerals, iron and steel industries. Applications include the purification of raw water, primary and secondary effluents, re-use of process and backwash water.
Introduction of Flocculants:
Specific chemicals known as flocculants used in water treatment are added to the water. These substances promote the aggregation of fine particles by neutralizing their electrical charges, which typically cause them to repel each other.
Gentle Mixing:
After adding flocculants, the water is gently mixed to encourage collisions between particles, leading to the formation of larger and denser clumps called flocs. The mixing intensity and duration are carefully controlled to ensure optimal floc formation without breaking apart the newly formed aggregates.
Floc Growth:
As mixing continues, flocs grow in size by capturing additional particles and smaller flocs. The increased size and weight make it easier for these aggregates to separate from the water in subsequent treatment stages.
Removal of Flocs:
Once adequately formed, flocs are removed from the water through processes such as sedimentation, where flocs settle to the bottom of a tank due to gravity, and filtration, where water passes through a medium that traps the flocs. This step effectively eliminates suspended solids, organic matter, and microorganisms, significantly improving water clarity and quality.
The efficiency of flocculation in water treatment is highly dependent on maintaining optimal pH levels and appropriate mixing conditions:
pH Levels:
The acidity or alkalinity of the water influences the effectiveness of flocculants. Each flocculant has an optimal pH range where it performs best. For instance, aluminum-based flocculants are most effective in slightly acidic to neutral pH conditions, while iron-based flocculants can operate effectively over a broader pH range. Maintaining the correct pH ensures maximum charge neutralization and efficient floc formation.
Mixing Intensity and Duration:
The mixing process must be carefully controlled:
Intensity:
Gentle and uniform mixing allows particles to come into contact and form flocs without causing them to break apart. Too vigorous mixing can shear the flocs, reducing their size and making removal more difficult.
Duration:
Adequte mixing time is essential to allow sufficient contact between particles and flocculants. The optimal duration varies depending on water characteristics and the type of flocculant used but typically ranges from 15 to 45 minutes.
Proper control of pH and mixing conditions leads to more effective removal of contaminants, reduced chemical usage, and overall improved efficiency of the water treatment process.
These two processes are intimately connected and often work sequentially to achieve optimal water purification:
Coagulation:
This is the initial step where coagulants, such as aluminum sulfate or iron salts, are added to water to destabilize and neutralize the charges of suspended particles. This neutralization allows particles to come closer together but doesn’t necessarily form large aggregates.
Flocculation:
Following coagulation, flocculation involves the gentle mixing of water to encourage the neutralized particles to collide and stick together, forming larger and settleable flocs. Additional flocculants may be added during this stage to facilitate and strengthen floc formation.
The combination of coagulation and flocculation ensures efficient removal of a wide range of contaminants by transforming dispersed and stable particles into large aggregates that can be easily separated from the water. This sequential process is fundamental in both drinking water and wastewater treatment, leading to safer and cleaner water for various uses.
Flocculation in water treatment plays a crucial role in the production of safe drinking water. By reducing turbidity, flocculation helps remove suspended particles that can harbor harmful microorganisms or contribute to unpleasant taste and odor. The process aggregates these fine particles into larger flocs, which are then easily removed through sedimentation or filtration. This step ensures that the water meets stringent safety and quality standards before it is distributed to consumers.
In the context of wastewater treatment, flocculants used in water treatment are vital for aggregating and removing a variety of pollutants from industrial and municipal wastewater. These pollutants often include heavy metals, organic matter, and other hazardous substances that can pose serious environmental and health risks if released untreated. Flocculation helps concentrate these contaminants into flocs, which can be effectively separated from the water, reducing the overall pollutant load and making the treated water safer for discharge or reuse.
Flocculation is also an important tool in stormwater management, where it is used to control and reduce the pollutant load in runoff water before it is released back into natural water bodies. Stormwater can carry a wide range of pollutants, including sediments, oils, heavy metals, and nutrients from urban areas. By applying flocculation, these pollutants are aggregated into flocs, which can then be removed through sedimentation or filtration systems. This process helps protect rivers, lakes, and coastal areas from pollution, contributing to the preservation of aquatic ecosystems and water quality.
